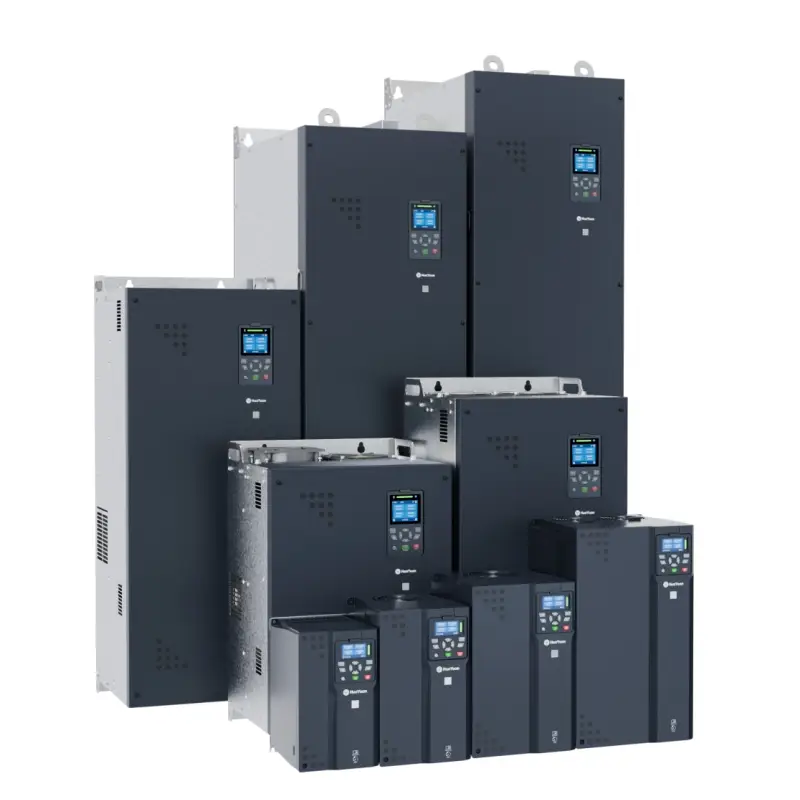

H100 series High-performance Calosed-loop Vector Frequency Converter
- Power Range: 0.75kW~800kW
- Safe Torque Off (STO) & ±10V
- 45~800kW buit-in DC reactor
- Optional Incremental encoder, Resolver encoder
- Support Modbus RTU, Modbus TCP/IP, CANopen, EtherCAT, EtherNet, Profinet, Profibus
LCD display
Features
Specification
Model List
Video
Accessories
Features
Specification
| Product Technical Specifications | ||
| Item | Specifications | |
| Input | Rated Voltage, Frequency | 4T: 380-480V, 50/60 Hz |
| Allowable Voltage Fluctuation Range | Fluctuation range: 320-528V; Unbalance degree: <3%; Frequency range: 47-63Hz | |
| Output | Output Voltage | 0-INPUT |
| Output Frequency | 0-320 Hz | |
| Overload Capacity (below 160kW) – Type N | 150% for 60s; 180% for 3s; 200% for 0.5s | |
| Overload Capacity (below 160kW) – Type L | 120% for 60s; 150% for 3s; 180% for 0.5s | |
| Control Characteristics | Control Mode | V/F Control, Sensorless Vector Control (SVC), Field Vector Control (FVC) |
| Starting Torque | 150% at 0.25Hz (SVC); 180% at 0Hz (FVC) | |
| Speed Regulation Range | 1:100 (V/F); 1:200 (SVC); 1:1000 (FVC) | |
| Speed Stabilization Accuracy | ≤±0.5% (SVC); ≤±0.02% (FVC) | |
| Speed Fluctuation | ≤±0.5% (SVC) | |
| Torque Response | ≤20ms (SVC); ≤20ms (FVC) | |
| Torque Control Accuracy | FVC: ±3%; SVC: ±5% (≥5.00Hz) | |
| Frequency Accuracy – Low Frequency Operation Mode | Digital setting: 0.01Hz; Analog setting: 0.2% of maximum frequency | |
| Frequency Accuracy – High Frequency Operation Mode | Digital setting: 0.1Hz; Analog setting: 0.2% of maximum frequency | |
| Frequency Resolution | 0.01Hz (low frequency); 0.1Hz (high frequency) | |
| Modulation Mode | SVPWM (Space Vector Pulse Width Modulation) | |
| Carrier Frequency | 0.5-16kHz, adjusted according to model | |
| Automatic Carrier Frequency Adjustment | When this function is enabled, the inverter can automatically adjust the carrier frequency according to the internal temperature | |
| Torque Boost | Manual torque boost 0.1%-30.0% under V/F control mode | |
| Torque Curve | 0: User-defined V/F curve; 1: Quadratic power curve; 2: 1.7th power curve; 3: 1.2th power curve | |
| Acceleration and Deceleration Time | 0-6500.0s, linear or S-curve acceleration/deceleration mode, four groups of acceleration and deceleration times optional | |
| Basic Functions | Jog Function | Jog frequency range: 0.00-max frequency; Jog acceleration/deceleration time: 0.1-6500.0s |
| Simple PLC & Multi-speed | Up to 16-speed operation via built-in PLC and control terminal functions | |
| Internal PID | Facilitates closed-loop control implementation | |
| Sleep and Wake-up | Process PID with sleep and wake-up functions | |
| Torque Limitation | Torque can be limited during speed control to avoid frequent overcurrent alarms | |
| DC Braking | DC braking start frequency: 0.00-max set frequency; DC braking time: 0.01-30.00s (0.0: Inactive); DC braking current: 0.0-100.0% of inverter rated current | |
| Automatic Voltage Regulation (AVR) | Maintains constant output voltage when input voltage deviates from rated value; AVR should be enabled under normal conditions, especially when input voltage is higher than rated value | |
| Automatic Current Limiting | Controls the inverter’s output current; when the output current reaches the automatic current limiting level, the output frequency is adjusted to keep the current below the set level, which can prevent overcurrent faults to the maximum extent and ensure uninterrupted operation of the inverter | |
| Overvoltage Stall Control | Suppresses the DC bus voltage during inverter operation to prevent DC bus overvoltage | |
| MODBUS Communication | Standard MODBUS communication protocol for fast and easy communication with peripheral devices | |
| Special Functions | Binding Function | Binding of operation command channel and frequency input channel without additional parameter settings |
| Sink/Source Selection for Input Terminals | Sink/source selection for DI1-DI7 terminals via SOU terminal to meet different application requirements | |
| Multi-segment AI Curve Calibration | Up to four points can be set for AI curve for flexible and convenient curve calibration | |
| Double Motor Parameters | Two sets of asynchronous motor parameters stored in memory, enabling switch control of two different motors | |
| Virtual I/O Ports | 5 channels of virtual DI/DO ports for easy implementation of complex logic control applications | |
| User-defined Parameter Group | Users can select required parameter groups and summarize them in P17 as custom parameters for convenient daily viewing and modification | |
| Operation & Running | Command Source Channel | Three modes: Keyboard setting, external terminal setting, communication setting, switchable freely |
| Frequency Source Channel | Multiple modes optional: Digital setting, analog setting, pulse setting, multi-speed, communication setting, etc. | |
| Input Terminals | 7 digital input terminals (DI1-DI7), sink/source input selectable; DI7 can be used as high-speed pulse input, supporting 12V and 24V levels, maximum frequency 100kHz; 2 analog input terminals, AI1: 0-10V or 0-20mA optional; AI2: 0-10V; Both analog terminals AI can be used as digital input terminals DI via parameter setting | |
| Output Terminals | 2 programmable switch output terminals, open collector output, DO1 supports 100kHz pulse output; 2 programmable relay output terminals, 250 VAC/3A, 30 VDC/3A; 2 analog output terminals, AO1: 0-10V or 0-20mA optional; AO2: 0-10V or 0-20mA optional | |
Model List
| Model | Frame | Brake Unit | DC Reactor | Rated Output Voltage (VAC) | Type N (General Load) | Type L (Fan & Pump Load) | ||||
| Rated Output Current (A) | Rated Capacity (kVA) | Adapted Motor (kW) | Rated Output Current (A) | Rated Capacity (kVA) | Adapted Motor (kW) | |||||
| H100-4T00071N-A | A | Built-in | / | 380 | 2.5 | 1.7 | 0.75 | / | / | / |
| H100-4T00151N-A | A | Built-in | / | 380 | 4 | 2.6 | 1.5 | / | / | / |
| H100-4T00221N-A | A | Built-in | / | 380 | 5.2 | 3.4 | 2.2 | / | / | / |
| H100-4T00401N/00551L-A | A | Built-in | / | 380 | 10 | 5.9 | 4 | 13 | 8.6 | 5.5 |
| H100-4T00551N/00751L-A | A | Built-in | / | 380 | 13 | 8.6 | 5.5 | 17 | 11.2 | 7.5 |
| H100-4T00751N/01102L-B | B | Built-in | / | 380 | 17 | 11.2 | 7.5 | 25 | 16.5 | 11 |
| H100-4T01102N/01502L-B | B | Built-in | / | 380 | 25 | 16.5 | 11 | 32 | 21 | 15 |
| H100-4T01502N/01852L-C | C | Built-in | / | 380 | 32 | 21 | 15 | 38 | 25 | 18.5 |
| H100-4T01852N/02202L-C | C | Built-in | / | 380 | 38 | 25 | 18.5 | 45 | 30 | 22 |
| H100-4T02202N/03002L-C | C | Built-in | / | 380 | 45 | 30 | 22 | 60 | 40 | 30 |
| H100-4T03002N/03702L-D | D | / | / | 380 | 60 | 40 | 30 | 75 | 50 | 37 |
| H100-4T03002N/03702L-D-B | D | Built-in | / | 380 | 60 | 40 | 30 | 75 | 50 | 37 |
| H100-4T03702N/04502L-D | D | / | / | 380 | 75 | 50 | 37 | 90 | 60 | 45 |
| H100-4T03702N/04502L-D-B | D | Built-in | / | 380 | 75 | 50 | 37 | 90 | 60 | 45 |
| H100-4T04502N/05502L-E | E | / | / | 380 | 90 | 60 | 45 | 110 | 75 | 55 |
| H100-4T04502N/05502L-E-B | E | Built-in | / | 380 | 90 | 60 | 45 | 110 | 75 | 55 |
| H100-4T04502N/05502L-E-DCL | E | / | Built-in | 380 | 90 | 60 | 45 | 110 | 75 | 55 |
| H100-4T05502N/07502L-E | E | / | / | 380 | 110 | 75 | 55 | 150 | 99 | 75 |
| H100-4T05502N/07502L-E-B | E | Built-in | / | 380 | 110 | 75 | 55 | 150 | 99 | 75 |
| H100-4T05502N/07502L-E-DCL | E | / | Built-in | 380 | 110 | 75 | 55 | 150 | 99 | 75 |
| H100-4T07502N/09002L-E | E | / | / | 380 | 150 | 99 | 75 | 176 | 116 | 90 |
| H100-4T07502N/09002L-E-B | E | Built-in | / | 380 | 150 | 99 | 75 | 176 | 116 | 90 |
| H100-4T07502N/09002L-E-DCL | E | / | Built-in | 380 | 150 | 99 | 75 | 176 | 116 | 90 |
| H100-4T09002N/11003L-F | F | / | / | 380 | 176 | 116 | 90 | 210 | 139 | 110 |
| H100-4T09002N/11003L-F-B | F | Built-in | / | 380 | 176 | 116 | 90 | 210 | 139 | 110 |
| H100-4T09002N/11003L-F-DCL | F | / | Built-in | 380 | 176 | 116 | 90 | 210 | 139 | 110 |
| H100-4T11003N/13203L-F | F | / | / | 380 | 210 | 139 | 110 | 250 | 164 | 132 |
| H100-4T11003N/13203L-F-B | F | Built-in | / | 380 | 210 | 139 | 110 | 250 | 164 | 132 |
| H100-4T11003N/13203L-F-DCL | F | / | Built-in | 380 | 210 | 139 | 110 | 250 | 164 | 132 |
| H100-4T13203N/16003L-G | G | / | / | 380 | 250 | 164 | 132 | 300 | 197 | 160 |
| H100-4T13203N/16003L-G-DCL | G | / | Built-in | 380 | 250 | 164 | 132 | 300 | 197 | 160 |
| H100-4T16003N/18503L-G | G | / | / | 380 | 300 | 197 | 160 | 340 | 224 | 185 |
| H100-4T16003N/18503L-G-DCL | G | / | Built-in | 380 | 300 | 197 | 160 | 340 | 224 | 185 |
| H100-4T18503N/20003L-H | H | / | Built-in | 380 | 340 | 224 | 185 | 380 | 250 | 200 |
| H100-4T20003N/22003L-H | H | / | Built-in | 380 | 380 | 250 | 200 | 415 | 273 | 220 |
| H100-4T22003N/25003L-H | H | / | Built-in | 380 | 415 | 273 | 220 | 470 | 309 | 250 |
| H100-4T25003N/28003L-H | H | / | Built-in | 380 | 470 | 309 | 250 | 520 | 342 | 280 |
| H100-4T28003N/31503L-J | J | / | Built-in | 380 | 520 | 342 | 280 | 600 | 395 | 315 |
| H100-4T31503N/35003L-J | J | / | Built-in | 380 | 600 | 395 | 315 | 650 | 421 | 350 |
| H100-4T35003N/40003L-J | J | / | Built-in | 380 | 650 | 421 | 350 | 720 | 454 | 400 |
| H100-4T40003N/45003L-J | K | / | Built-in | 380 | 720 | 454 | 400 | 810 | 530 | 450 |
| H100-4T50003N-K | K | / | Built-in | 380 | 940 | 618 | 500 | / | / | / |
| H100-4T63003N-K | K | / | Built-in | 380 | 1200 | 790 | 630 | / | / | / |
| H100-4T80003N-K | K | / | Built-in | 380 | 1400 | 908 | 800 | / | / | / |
| *H100-4T04502N/05502L-D | D | / | / | 380 | 90 | 60 | 45 | 110 | 75 | 55 |
| *H100-4T04502N/05502L-D-B | D | Built-in | / | 380 | 90 | 60 | 45 | 110 | 75 | 55 |
| Note: Models marked with * are suitable for specific applications. Please consult the customer service for details. | ||||||||||
Video
Accessories
| OPTIONAL ACCESSORIES
| ||||||||
| Size | Installation Method | Optional Accessories | ||||||
| Wall-mounting Type | Flush-mounting Type | Floor-standing Type | Flush-mounting Kit | NEMA1 Protective Accessory Kit | Shielded Cable Grounding Kit | Dust-proof Accessory Kit | Base | |
| A | √ | √ | / | √ | √ | √ | √ | / |
| B | √ | √ | / | √ | √ | √ | √ | / |
| C | √ | √ | / | √ | √ | √ | √ | / |
| D | √ | √ | / | √ | √ | √ | √ | / |
| E | √ | √ | / | √ | / | / | √ | / |
| F | √ | √ | / | √ | / | / | √ | / |
| G | √ | √ | / | √ | / | / | √ | / |
| H | √ | / | √ | / | √ | / | / | √ |
| J | √ | / | √ | / | √ | / | / | √ |
| K | / | / | √ | / | / | / | / | / |
| Name | Model | Description |
| Communication Card | EH100TX11 | CANopen Communication Card |
| EH100TX31 | EtherCAT Communication Card | |
| EH100TX51 | EtherNet/IP Communication Card | |
| EH100TX61 | Modbus TCP/IP Communication Card | |
| EH100TX21 | PROFIBUS Communication Card | |
| EH100TX41 | PROFINET Communication Card | |
| I/O Expansion Card | EH100IO11 | I/O Expansion Card: 4 DI, 2 AI (0~10V/0~20mA), 4 DO (Open-collector output), 2 NO/NC Relay |
| Temperature Detection Card | EH100PT11 | Supports 2 PT100 temperature Detection |
| PG Card | EH100PG11 | 5V Differential Multi-function Incremental PG Card: Supports dual incremental encoders, 1x, 2x, 4x, 6x frequency division output, and supports A, B, Z pulse input. |
| EH100PG21 | Resolver PG Card, supports 2 PT100 temperature detection. | |
| Keypad | VDP-BT22 | Dual-Display Keypad, External Cable Distance 200m |
| VDP-SE12 | Single-Display Keypad, External Cable Distance 200m | |
| VDP-BC42 | LCD keypad, supporting Wi-Fi and Bluetooth functions |
