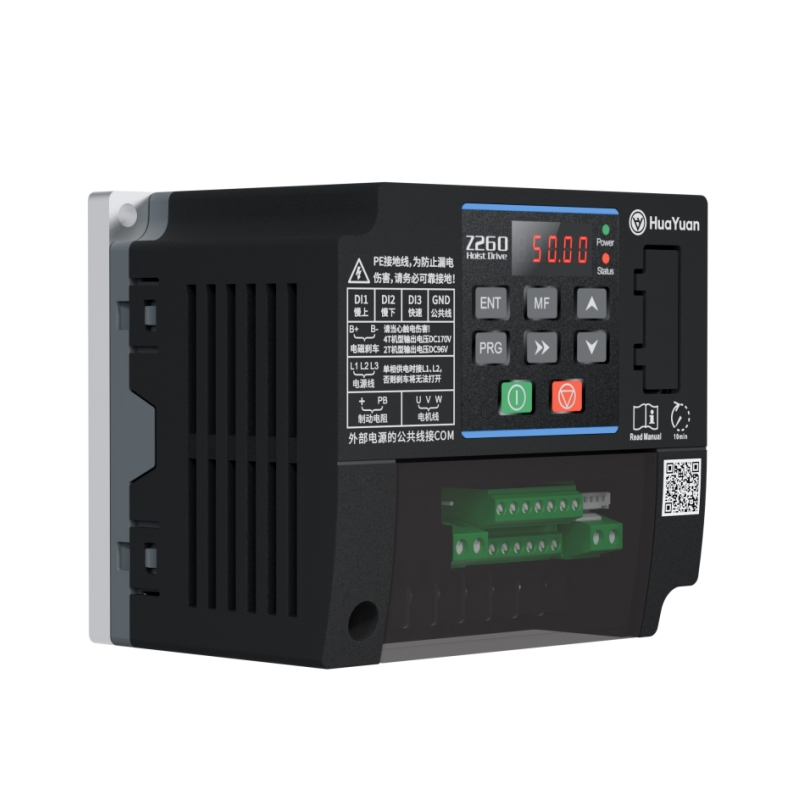

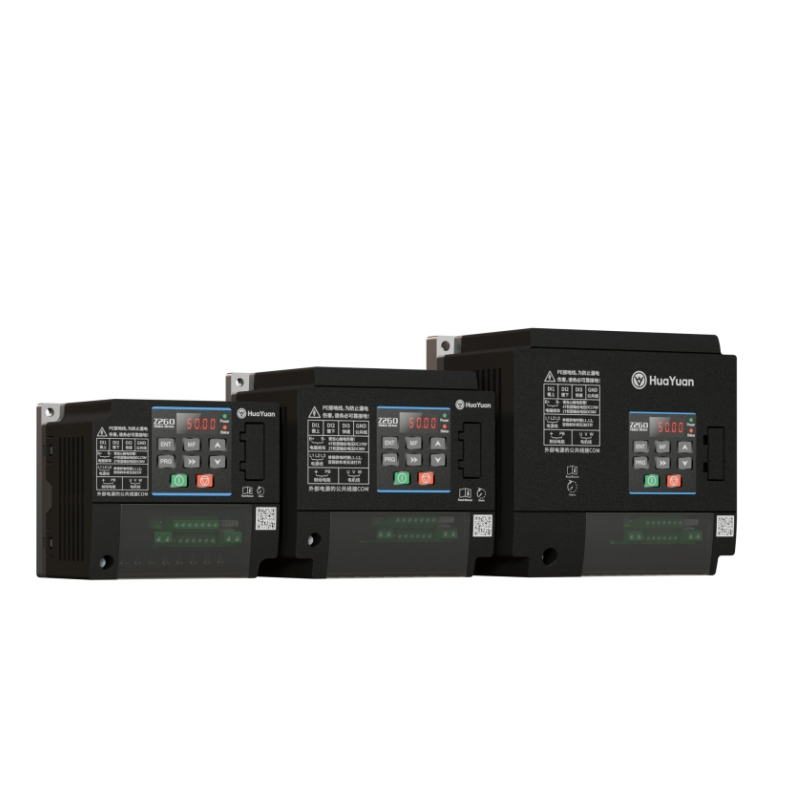

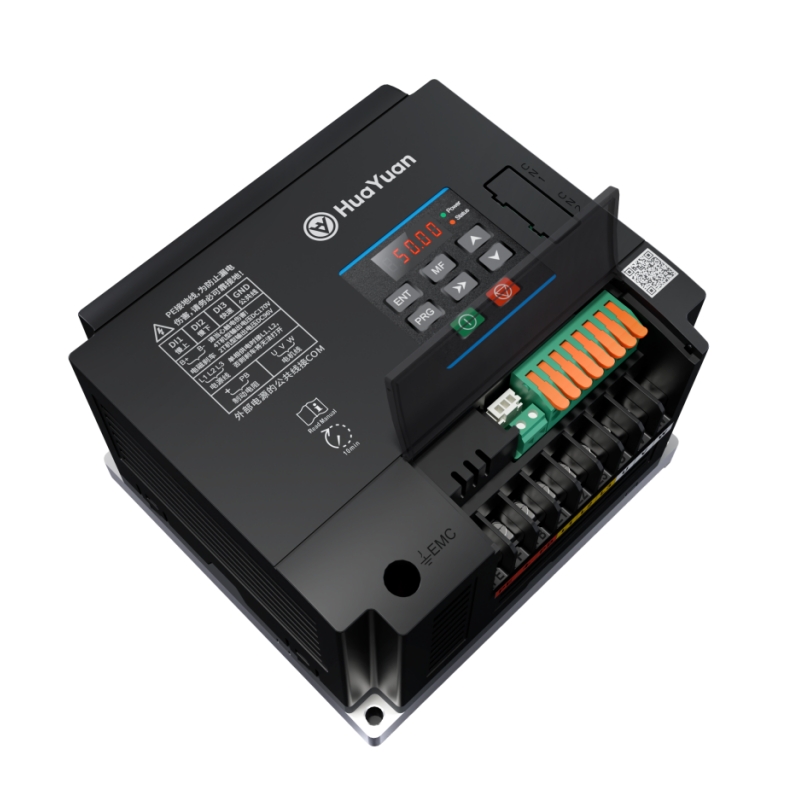

Z260 Series Dedicated VFD Inverter for Cranes and Lifting Industry
- Power Range: 0.4kW~7.5kW
- Standard-equipped Brake Control Logic
- Built-in Zero-speed Holding function
- Standard-equipped Anti-sway function
- Built-in Hoist App Macros, One-click Debug
Features
Specification
Model List
Video
Accessories
Features
- Z260Series Electric Hoist-Specific Frequency Converter
- Z260① – 1② S③ 0005④ – A⑤
- ① Product Series Name
- ② Voltage Class 1: 110V / 2: 220V / 4: 380V
- ③ Power Supply Phase S: Single-phase / T: Three-phase 380V
- ④ Power Rating 0040: 4kW / 0055: 5.5kW …
- ⑤ Frame A: Size A / B: Size B …
- Product Power：0.5kW-11kW
- Control Mode：V/F，SVC，FVC
- Input Voltage：Single-phase 110V,Single/Three-phase 220V，Three-phase 380V
- Motor Type：Supports synchronous and induction motors.
- Protection Level：IP20
- Operating Temperature：-10~55℃ ，derating required above 50℃
- Pollution Degree：PD2
- Overvoltage Level ：OVCIII
- Altitude：Below 1000m; above 1000m, the output current capacity of the frequency converter decreases by 10% for every 1000m increase, with a maximum altitude of 3000m
- Digital Input：5 digital input: DI1~DI4 are optocoupler isolated bipolar inputs, supporting a maximum of 54Vac AC input. HDI is a high-speed pulse input with a voltage range of 10V~30V and frequency range of 0Hz~50kHz.
- Analog Input：1 analog input: 0V~10V, input impedance 22kΩ, resolution 0.1%, accuracy 2%, sampling period 5ms.
- Relay Output：1 integrated brake power supply Form A 5A relay series output:
- 380V supply: B+, B- output voltage DC 170V
- 220V supply: B+, B- output voltage DC 99V
- 110V supply: B+, B- output voltage DC 99V
- Debugging Keypad：Standard integrated membrane keypad.
- Functional Interface：AN bus communication interface, RS485 communication encoder interface, 4-wire/6-wire load cell interface.
Specification
| Frame | Installation size(mm) | Overall dimension(mm) | |||
| W1 | H1 | W | H | D | |
| A | 85 | 100 | 95 | 110 | 76 |
| B | 104 | 114 | 115 | 125 | 93 |
| C | 128 | 141 | 140 | 153 | 98 |
Model List
| Model | Rated Voltage (V) | Rated Output Current (A) | Rated Capacity (kVA) | Matching Motor (kW) |
| Z260-1S0005-A | Single-phase110 | 5.2 | 1 | 0.4 |
| Z260-2T0015-A | Three-phase 220 | 7 | 2.7 | 1.1 |
| Z260-4T0015-A | Three-phase 380 | 4 | 2.6 | 1.1 |
| Z260-4T0007-A | 2.5 | 1.6 | 0.5 | |
| Z260-4T0022-A | Three-phase 380 | 5.2 | 3.4 | 1.5 |
| Z260-1S0015-B | Single-phase 110 | 13 | 2.5 | 1.1 |
| Z260-2T0022-B | Three-phase 220 | 10 | 3.8 | 1.5 |
| Z260-4T0040-B | Three-phase 380 | 10 | 6.5 | 3 |
| Z260-4T0055-B | 13 | 8.5 | 4 | |
| Z260-1S0020-C | Single-phase 110 | 17 | 3.2 | 1.5 |
| Z260-1S0030-C | 25 | 4.7 | 2.2 | |
| Z260-2T0040-C | Three-phase 220 | 17 | 6.5 | 3 |
| Z260-2T0055-C | 25 | 9.5 | 4 | |
| Z260-4T0075-C | Three-phase 380 | 17 | 11 | 5.5 |
| Z260-4T0110-C | 25 | 16 | 7.5 |
*For 2T models powered by single-phase 220V AC, the power rating must be downgraded by one level. (For example: A 2T-2.2kW model powered by single-phase 220V AC actually supports a power rating equivalent to 2T-1.5kW.)
